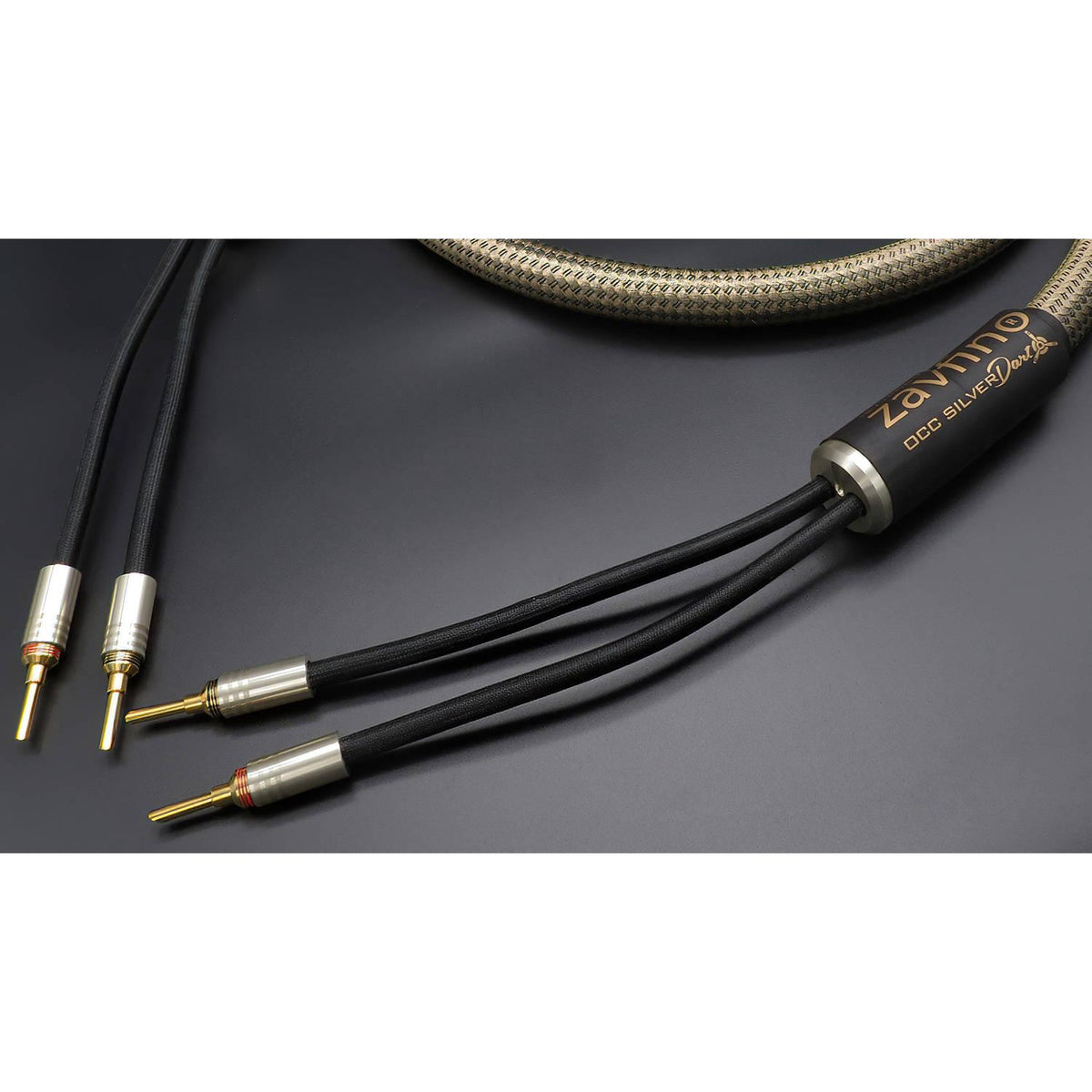

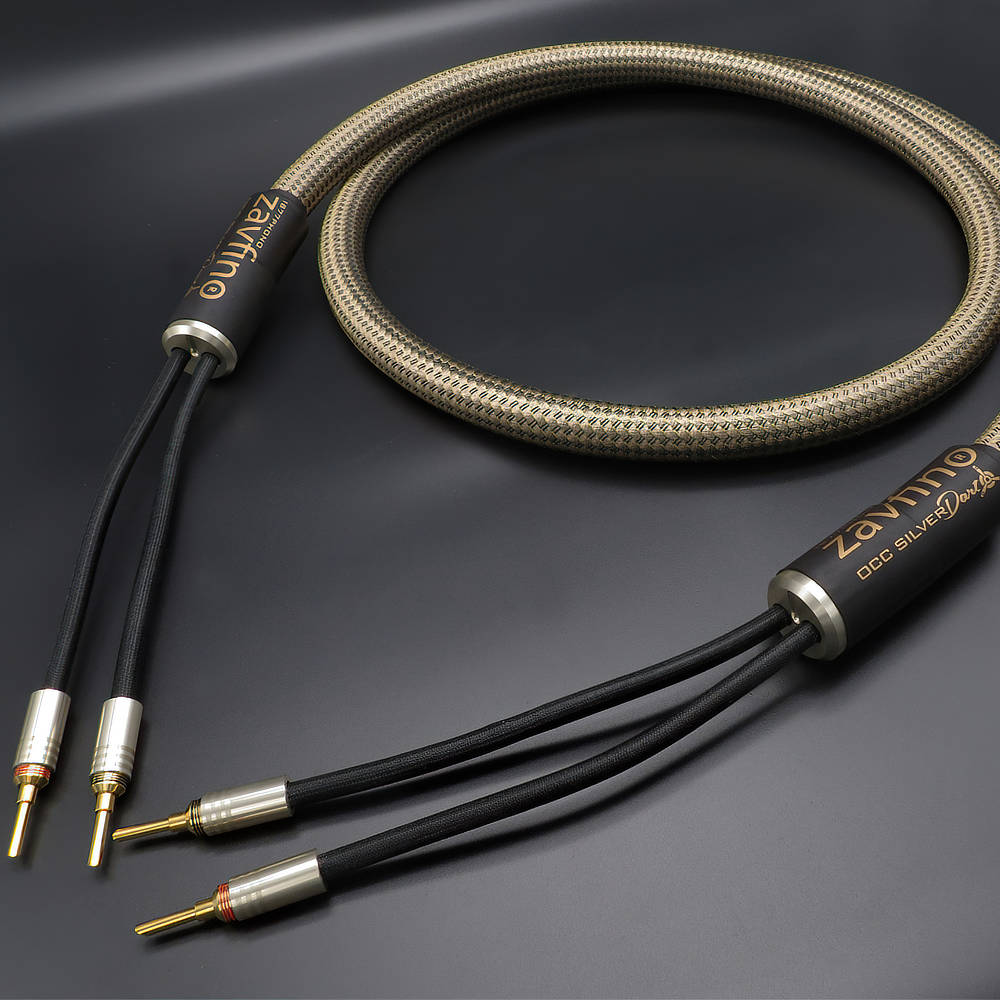

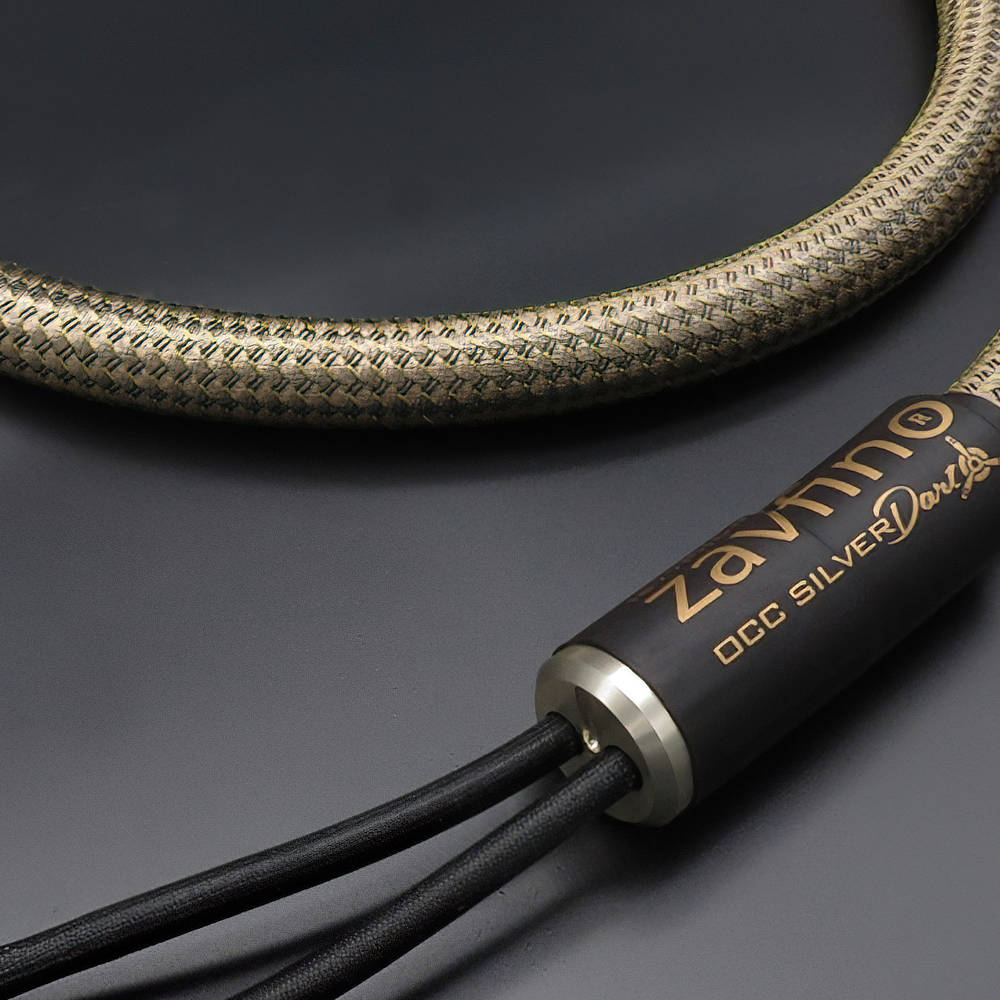

The Zavfino Silver Dart Speaker Cable is the culmination of 3 years of development and testing using the Zavfino H-Wound™ stranding technique on large gauge conductors coupled with the newly developed Graphene doped conductive dielectric.

Utilising the Zavfino H-Wound™ stranding each core is guaranteed “Zero Strand Loss” during assembly as the final horizontal silver OCC layer not only allows for perfect pitch across the conductors but also acts as a barrier layer to prevent fallen or clipped strands during the assembly process. What this means is 100% identical cores.

The Silver Dart’s OCC conductors are Cryo-Treated before extrusion and then undergo a thermal cleaning process to remove any external dirt, oils, and drawing residue from the conductor surface. This high-voltage cleaning also puts a continuous voltage through the cable giving the Zavfino Silver Dart a sound and performance of a cable, which has been played for many months. Silver Dart also uses a spaced layer “cable in cable” technique insulating this cable to an overall diameter of 23mm using a design that is uniquely Zavfinos own and adding its signature sound.

UltraSonic 7 High Voltage / Thermal Break-in

This is a two-stage process. In the first stage draw the bare conductor through a ceramic die into an ultrasonic cleaning chamber that bombards the conductor with multiple ultrasonic frequencies. This emulsification process removes all debris from the surface of the wire down to the molecular level and leaves absolutely zero residues. After each individual wire is processed, we strand it into bundles and then subject the bundles to further treatment. During the second stage of the ultrasonic burn-in,  the voltage is increased to a higher level that’s just below the threshold of the conductor. This adjustment in temperature allows us to get a unique “break-in effect” normally associated with cables that have had 30 to 40 hours of signal and/or current run through them.

Zavfino’s H-Wound™ + Zero Strand Loss

Drawing on more than 18 years of manufacturing experience, Zavfino has developed a remarkable new technique for twisting stranded wire tightly around a central solid-core conductor. An electrical phenomenon commonly known as the “skin effect” occurs when electrons move through any solid core conductor. Higher frequencies travel along the outside (the skin) of the conductor faster than midrange and lower echelon frequencies. This results in smeared PRaT, muddled instrumental timbres, and an unnatural sound. Zavfino’s new H-Wound™ manufacturing technique negates the skin effect. Originally developed by OEMs Siemens and Klangfilm, Zavfino uses a customised transformer wire-stranding machine. Zavfino further modified the gears in this machinery to create windings at a slower RPM ratio with a much tighter pitch. This patented manufacturing process enables us to twist the wiring at the tightest pitch possible without overlapping the wire strands. Most wire-stranding machines can only fabricate windings up to a maximum of 300 twists per metre.

Setting the bar far higher, Zavfino’s patented H-Wound™ cable winding machine creates a pitch rate of 14,000 to 16,000 twists per meter; which is unmatched by any other audiophile cable maker. Zavfino’s new Zero Strand Loss™ manufacturing technique protects the bundled conductors from being damaged during stripping and termination. By ensuring that each core has zero chipped, cut, or mangled strands guarantees that each insulated core is 100% identical. For audiophiles, the sonic results of tighter windings and Zero Strand Loss™ conductors are cables with quieter backgrounds, remarkable timbral accuracy, lifelike PRaT, jaw-dropping mid-range resolution, and superior low-frequency extension. The Zavfino new H-Wound™ stranding technology allows the protection of the delicate electrical signal being transferred through the cable. Combined with Zavfino’s state-of-the-art manufacturing techniques, precision-matched OCC Copper (Cu) and Silver (Ag) conductors used in the Silver Dart™ Series of cables bring unequaled purity and honesty to all forms of music. The results are previously unheard details, finesse, and accuracy across the frequency spectrum.

Deep Cryo™ Treatment

All of the conductors used in our cables undergo Deep Cryo™ treatment before the insulation is extruded over the metals. Our research has proven that the conductor—and only the conductor— benefits from cryo-treatment. Materials such as polyvinyl chloride (PVC™), Teflon™, PE, and Silicon™ can all be adversely affected by cold-temperature annealing. Cryo-treating non-conductors and insulating materials can cause them to break down and become brittle.

The purity, size, and molecular structure of each conductor determine the specific temperature within the -186ºC to – a 196ºC range that we cryo-treat it at. Zavfino’s research into cold temperature physics has proven that the absolute lowest temperature is not necessarily the best for cryo-treatment.

Zavfino ZGRAPh-LDP GRAPHENE

Zavfino is the first audiophile cable OEM to integrate graphene insulation into high-end A/C power cables as a dielectric shield. After more than two years in development with a leading American graphene polymer research company, they unveiled the new proprietary ZGRAPh-LDPTM conductive shielding/dielectric, first used within the Silver DartTM OCC A/C power cable.The results of using ZGRAPh-LDPTM

1. Superior protection from electromagnetic interference as the graphene contour moulds to our copper shields and prevents EMI spikes. The end result is improved grounding and vastly superior signal transmission.

2. Graphene has excellent Electrostatic Discharge (ESD) properties that eliminate static electricity and triboelectric charging; both of which can negatively affect a cable’s performance.

3. Graphene’s high heat defection reinforces the dielectric by 30%. This ensures that all Zavfino cables that are shielded with graphene will deliver unchanged performance for decades to come.

4. Graphene creates a 100% anti-corrosive barrier that prevents the ingress of oxygen into the shield and conductors. An air-tight seal and zero corrosion further guarantee consistency of signal transfer at a molecular level and unchanged sonic performance for a lifetime of usage.

Why Zavfino’s Graphene outperforms traditional shielding

Traditional dielectric insulation that uses braided Copper (Cu) or Mylar shields cannot ensure a perfectly closed shield. Copper braids and Mylar wraps both have gaps between their overlaid bundles and layers which inherently occur during manufacturing. Low-frequency interference and high-frequency noise will slip through these gaps and cause electromagnetic contamination and sonic degradation.

Zavfino’s primary goal is to keep any and all EM interference away from the signal’s transmission path.

By utilising extruded graphene polymer jacket over the shield, the new ZGRAPh-LDP cover solves a myriad of electrical problems which braided shielding innately causes.

Zavfino graphene dielectric ensures 100% coverage as it moulds itself to the traditional shield and drain of the cable. In effect, this creates a perfectly closed electromagnetic field.

Specifications

• Single Crystal OCC Copper
• 10AWG/Core (2X10AWG) (H-Wound™) 16,000 Twists/Meter
• Graphene Absorption Dielectric
• Teflon PTFE Dielectric
• LDPE-Dielectric
• Cable -in- Cable Design
• Ultra-Sonic 7™ Cleaning burn-in process
• Deep Cryo Treated before extrusion
• Spaced layer suspension extrusion 6 mm
• Anti-static multi-weave direct braid jacket
• High-Density EVA Vibration cuffs
• Machined Aluminium Break-outs
• Connectors: 24k gold plated BFA/Optional 24k Spade or Locking Banana
• Standard Lengths: 2.5 meter/ 5.0 meter /Custom
• Diameter 24.0 mm
• 2.5 Metre Length
• This product has a: 1 Year Warranty
