Bowers & Wilkins 802 D5 Review: Reference-Grade Floorstanding Speakers With Diamond Precision and Serious Bass Authority

Few loudspeakers carry the weight of expectation that the 800 Series Diamond does, and in this Bowers & Wilkins 802 D5 review we look at a speaker that sits just below the flagship 801 D5. It brings much of the company's most advanced acoustic engineering into a slightly more compact cabinet. The 802 D5 is a three-way, vented-box reference floorstander built around a 25 mm Diamond dome tweeter, a dedicated 150 mm Continuum cone FST midrange and dual 200 mm Aerofoil bass drivers. Bass response is quoted down to 17 Hz at ±3 dB. If you have been dreaming of a speaker that can reveal the micro-detail of a string quartet and still deliver the scale of a full symphony orchestra or a blockbuster soundtrack, read on.

Bowers & Wilkins 802 D5 Review: Where It Sits in the 800 Series Diamond Line-Up

The 802 D5 is the connoisseur's choice in the 800 Series range. Its big sibling, the 801 D5, is the statement flagship. The 802 D5 keeps the defining hallmarks of that design: the Solid Body Tweeter-on-Top, the decoupled Turbine Head, the reverse-wrap cabinet and Matrix bracing. It then packages that technology around a pair of 200 mm Aerofoil woofers. The result stands 1,218 mm tall including tweeter and plinth and weighs 91.4 kg. That makes it a genuine reference loudspeaker, but one that suits a wider range of serious listening rooms and premium home theatres.

Deciding between the 801 D5, 802 D5 or 803 D5 for your space is exactly the kind of conversation our team loves. Give us a call on 1300 308 711 and we'll talk through your room, your amplification and your listening habits.

Diamond Dome Tweeter: Treble Without Compromise

At the very top of the 802 D5 sits Bowers & Wilkins' renowned 25 mm Diamond dome tweeter. Diamond offers an exceptional stiffness-to-mass ratio, and that is the key to its performance. The dome's break-up frequency extends to approximately 70 kHz, which pushes its resonant behaviour far beyond the limits of human hearing.

In practical terms, the audible band is left clean, pistonic and free of the ringing and edge that can make lesser tweeters fatiguing. You hear the shimmer and decay of cymbals and the rosin and air around a violin bow. Hall reverb tails are laid out with remarkable resolution, yet the presentation never tips into harshness or exaggeration. For listeners who treasure high-resolution recordings, this is treble reproduction of the highest order.

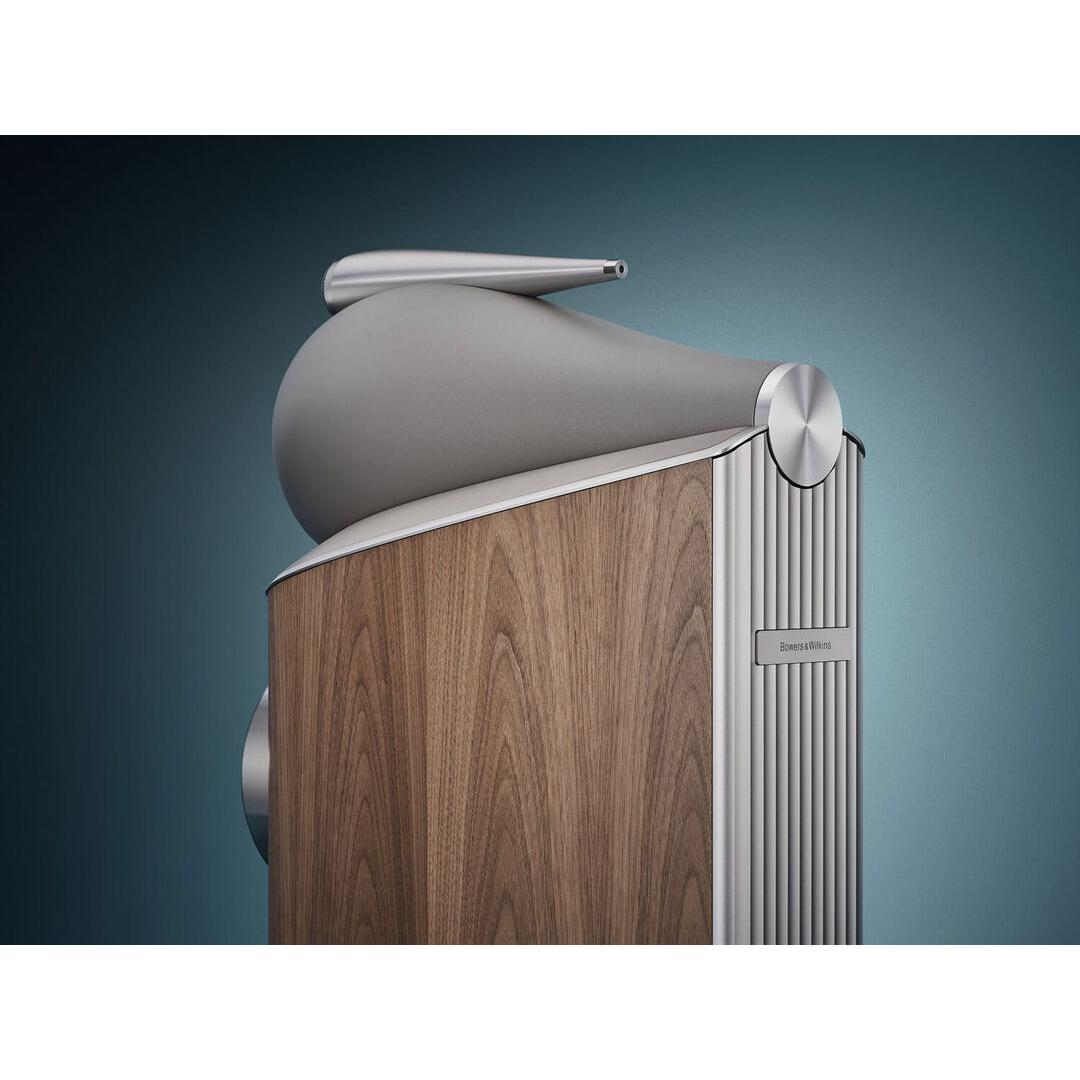

Solid Body Tweeter-on-Top

The Diamond tweeter is not mounted in the main baffle. Instead, it lives in its own rigid Solid Body Tweeter-on-Top enclosure. Physically isolating the tweeter from the larger drive units reduces acoustic interference and cabinet-borne vibration. The elongated, streamlined housing is also shaped to minimise diffraction around the dome. That translates directly into pinpoint stereo imaging and a more convincing sense of space. Performers appear as solid, stable images between and beyond the speakers, rather than being tethered to the boxes.

Continuum Cone FST Midrange: The Heart of the Music

The midrange is where music lives, and the 802 D5 dedicates a 150 mm Continuum cone FST driver to this critical band. The Continuum cone is engineered for smooth, well-controlled behaviour. It avoids the abrupt resonance characteristics of some traditional cone materials. Voices sound natural and properly embodied, and instruments retain their correct tonal colour and texture. Dense, complex mixes stay clear, layered and easy to follow.

Biomimetic Suspension and Anti-Resonance Plug

Behind that cone sits one of the more fascinating pieces of engineering in the 802 D5: Bowers & Wilkins' Biomimetic Suspension. It replaces the conventional fabric spider found in most drive units. Its open structure reduces trapped air pressure and mechanical noise behind the cone, lowering the noise floor of the midrange itself. The payoff is finer low-level detail: the breath before a vocal line, the subtle harmonic overtones of an acoustic guitar, the fingers moving across piano keys. An Anti-Resonance plug further governs the driver's motion for greater clarity and consistency.

Decoupled Aluminium Turbine Head

The midrange driver is mounted in the distinctive Turbine Head, machined from solid aluminium and acoustically decoupled from the main bass cabinet. Its curved form resists internal standing waves and gives the Continuum driver an extraordinarily stable platform. Decoupling keeps energy from the bass enclosure away from the midrange. This is a big part of why the 802 D5 paints such a precise, believable soundstage with a real sense of depth.

Dual 200 mm Aerofoil Bass Drivers: Depth, Speed and Control

Low-frequency duties fall to two 200 mm Aerofoil bass drivers. Each Aerofoil cone uses a carefully formed profile, varying in thickness to stay rigid under excursion. Cone flex is a primary source of low-frequency distortion, so this rigidity gives the 802 D5 deep bass with outstanding grip and reduced distortion. It holds even on the most demanding material: pipe organ, large-scale orchestral crescendos, modern electronic productions and cinematic LFE-heavy effects.

The quoted figures are genuinely impressive for a passive floorstander of this size. The frequency response is 17 Hz to 28 kHz at ±3 dB, and the frequency range extends from 14 Hz to 35 kHz at -6 dB. That is true full-range performance, reaching into territory many listeners hand over to a subwoofer. Just as importantly, the bass is designed to stay fast, defined and tonally accurate rather than bloated. Kick drums have snap, bass lines have pitch, and film scores have physical impact.

Flowport Bass Reflex Technology

The 802 D5 is a vented design and uses Bowers & Wilkins' Flowport system. Much like a golf ball, the port's dimpled surface reduces turbulence as air moves in and out of the enclosure. That means less chuffing and port noise, so bass stays cleaner, quieter and more controlled, particularly when you push the volume.

Cabinet Engineering: The Science of Silence

A loudspeaker cabinet should be heard as little as possible, and the 802 D5 attacks cabinet colouration from every angle.

• Upgraded Matrix bracing: interlocking internal panels reinforce the enclosure from within, suppressing panel movement that would otherwise colour the sound.
• Aluminium Space Frame Bracing and aluminium upper cabinet section: these add further rigidity, contributing to a quieter background, sharper imaging and a more spacious presentation.
• Reverse-wrap cabinet: instead of a flat front, the enclosure is a continuous curved structure secured by a solid aluminium rear spine. The join and opening sit at the rear, leaving a smooth, acoustically stable surface around the drivers that reduces reflections and diffraction.

The combined effect is the defining trait of great reference speakers: a jet-black background from which music emerges with clarity, dynamics and scale. Harmonic distortion is specified at less than 1% from 70 Hz to 20 kHz and less than 0.3% from 100 Hz to 8 kHz, which speaks to the engineering discipline behind this design.

Amplification: Partnering the 802 D5

With a sensitivity of 90 dB and a nominal impedance of 8 ohms, the 802 D5 can reach substantial levels. The minimum impedance of 3.3 ohms and dual bass drivers mean it rewards amplifiers with robust, stable current delivery. Bowers & Wilkins recommends 50 to 1,000 watts into 8 ohms on unclipped programme material. That is a wide window, but to fully control those Aerofoil woofers and unlock the speaker's dynamic range, a quality high-current amplifier is the way to go. Consider a muscular integrated, a pre/power combination or a well-specified AV processor with dedicated power amps for home theatre.

Cabling matters too. Bowers & Wilkins specifies a maximum recommended cable impedance of 0.1 ohm. Our team can help you pair the 802 D5 with amplification and cabling that brings out its best. Call us on 1300 308 711 or email sales@theaudiotailor.com.au for tailored system advice.

Stereo Reference or Home Theatre Powerhouse?

The honest answer is both. In a dedicated two-channel room, the 802 D5 delivers expansive imaging, lifelike vocals and the scale needed for large musical performances. It is a speaker for listeners who want to hear exactly what is on the recording, in full, with nothing added and nothing lost.

In a premium multichannel system, it makes a commanding front left and right pairing alongside compatible 800 Series Diamond centre and surround models. Timbre-matched drivers across the front stage mean pans are seamless, dialogue is locked to the screen and effects sweep across the room with cinematic weight. With in-room extension approaching the low teens at -6 dB, the 802 D5 lays a formidable foundation for your subwoofer integration.

Finishes and Craftsmanship

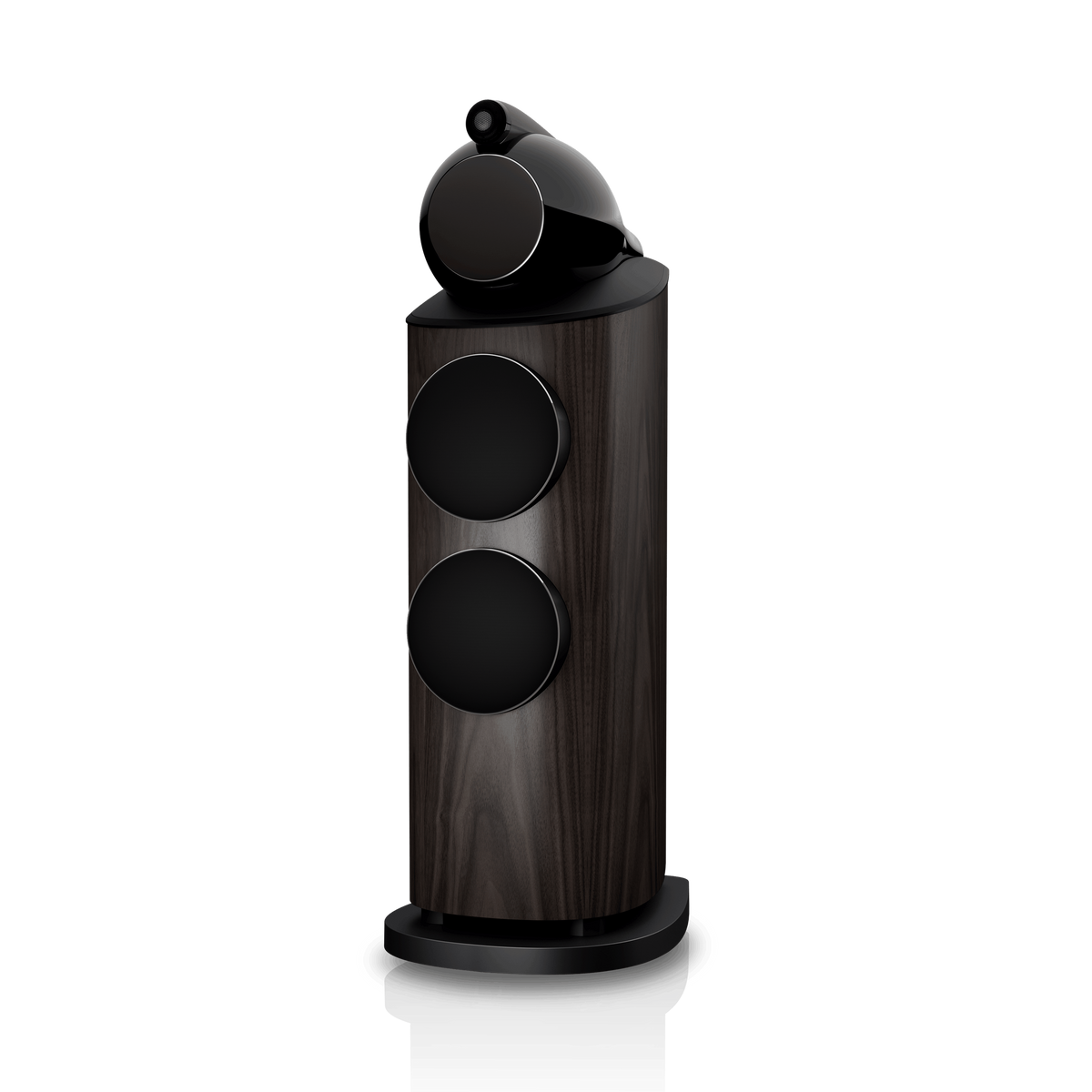

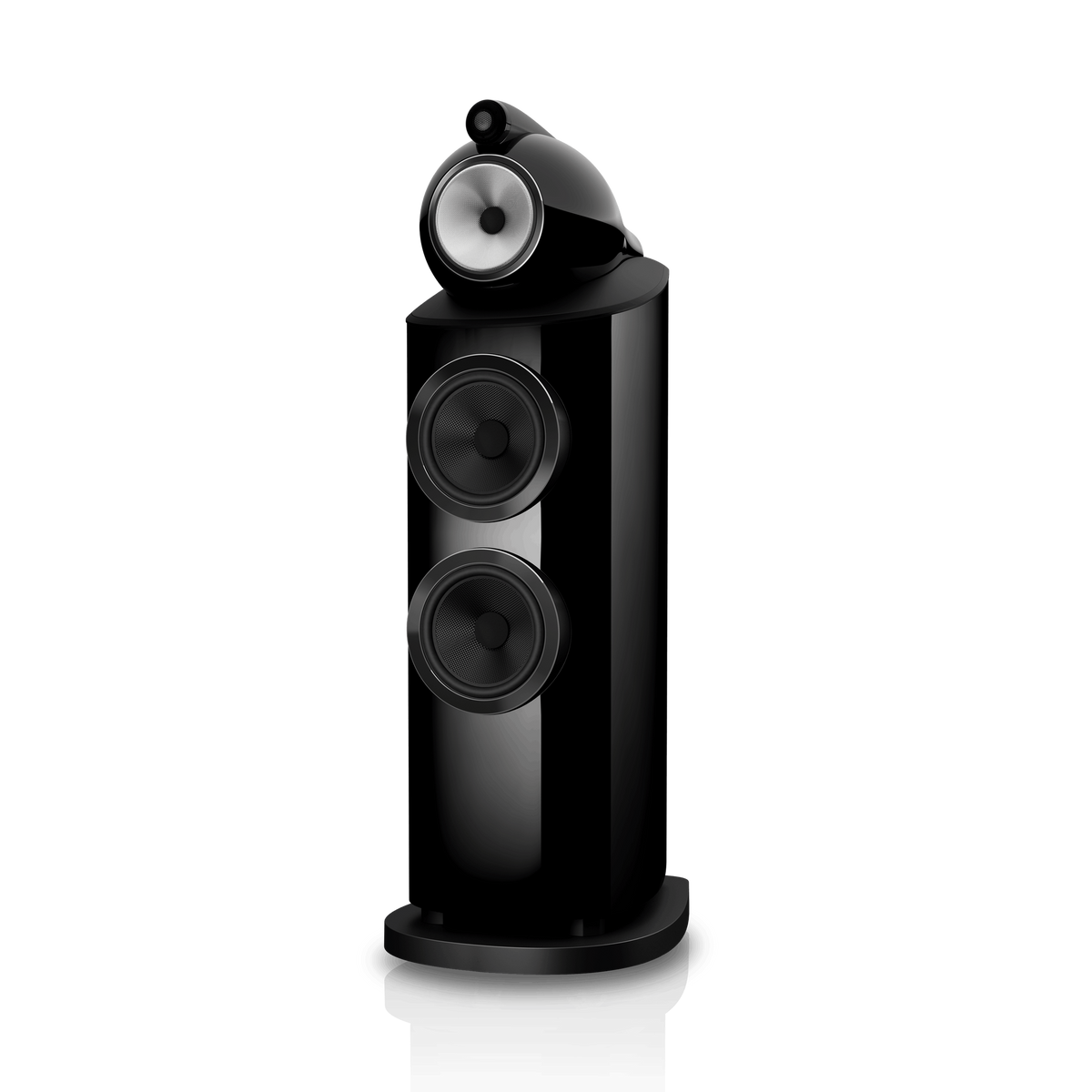

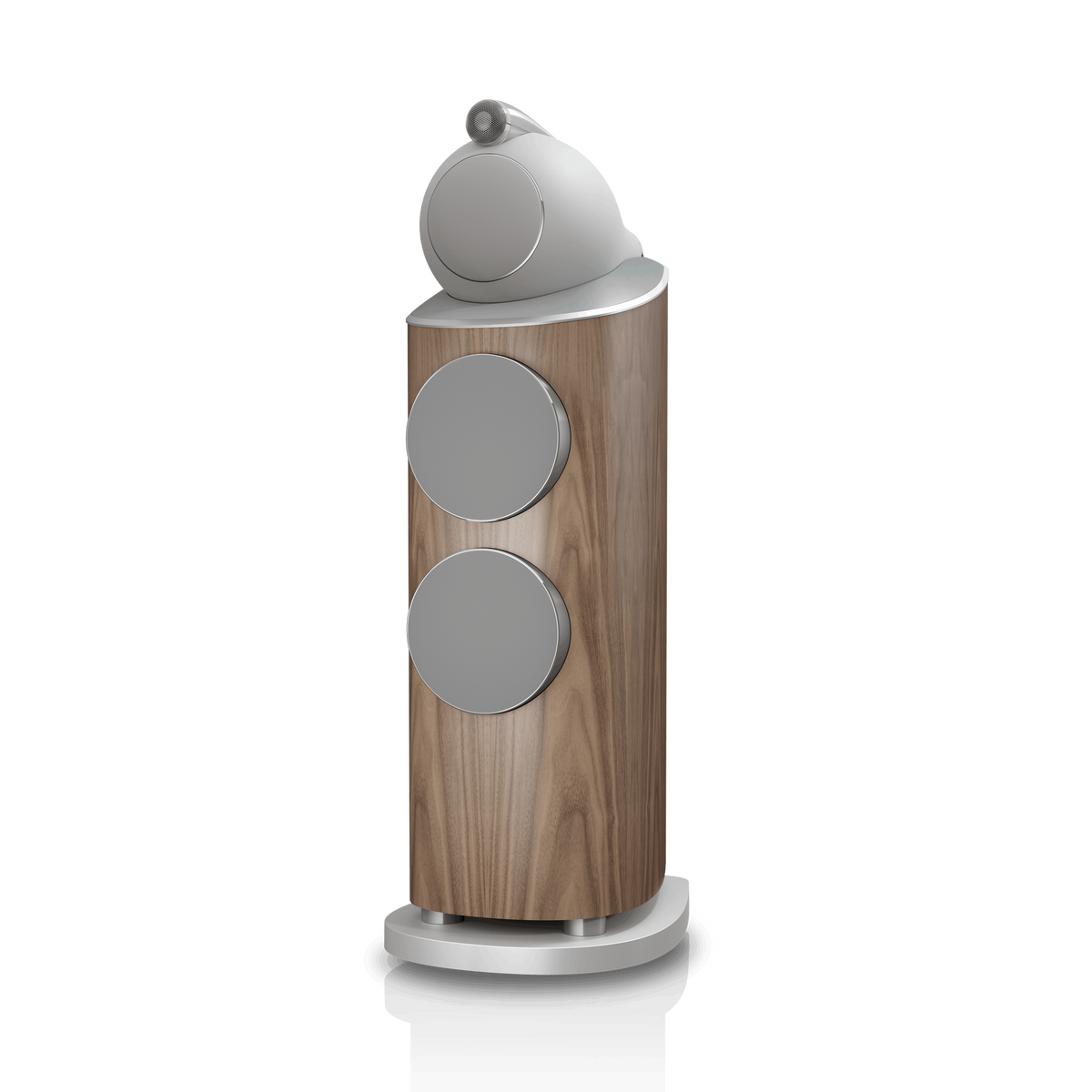

The 802 D5 looks every bit the luxury object it is. It is offered in four premium finishes:

• Stealth Black with black grilles
• Dark Walnut with black grilles
• Warm White with grey grilles
• Light Walnut with grey grilles

Each is complemented by matching Leather by Connolly trim, a detail that reflects the level of care throughout the product. Whether your space calls for understated contemporary black or the warmth of natural walnut, there is a finish to suit.

Who Is the Bowers & Wilkins 802 D5 For?

• Serious two-channel audiophiles seeking a true reference speaker with full-range bass, Diamond treble resolution and holographic imaging.
• Home theatre enthusiasts building a no-compromise 800 Series Diamond front stage.
• Upgraders from the 803 or 804 who want more bass authority and scale without stepping up to the flagship 801 D5.
• Design-conscious listeners who want a loudspeaker that looks as extraordinary as it sounds.

Pros and Cons

Pros

• 25 mm Diamond dome tweeter with break-up pushed to approximately 70 kHz for pristine, fatigue-free treble
• Solid Body Tweeter-on-Top for superb imaging and reduced diffraction
• Continuum cone FST midrange with Biomimetic Suspension for natural, detailed vocals
• Decoupled solid aluminium Turbine Head for a stable, precise soundstage
• Dual 200 mm Aerofoil bass drivers reaching 17 Hz (±3 dB) with speed and control
• Matrix bracing, Aluminium Space Frame and reverse-wrap cabinet for an exceptionally quiet background
• Flowport technology for clean, turbulence-free bass at high levels
• Low distortion: less than 0.3% from 100 Hz to 8 kHz
• Equally at home in high-end stereo or premium home theatre
• Four luxurious finishes with Leather by Connolly trim

Cons

• At 91.4 kg each, it deserves careful setup, so plan your placement (our team is happy to advise)
• Its resolving power will expose weaker electronics, so partner it with quality, high-current amplification to hear everything it can do

Technical Specifications at a Glance

• Enclosure: three-way vented-box system
• Tweeter: 1 × 25 mm Diamond dome
• Midrange: 1 × 150 mm Continuum cone FST
• Bass: 2 × 200 mm Aerofoil cones
• Frequency range: 14 Hz – 35 kHz (-6 dB)
• Frequency response: 17 Hz – 28 kHz (±3 dB)
• Sensitivity: 90 dB
• Impedance: 8 ohms nominal, 3.3 ohms minimum
• Recommended amplifier power: 50 – 1,000 W into 8 ohms on unclipped programme
• Maximum recommended cable impedance: 0.1 ohm
• Harmonic distortion: <1% (70 Hz – 20 kHz); <0.3% (100 Hz – 8 kHz)
• Height: 1,218 mm (including tweeter and plinth)
• Width: 345 mm cabinet; 413 mm including plinth
• Depth: 556 mm including grille and terminals; 589 mm including plinth
• Net weight: 91.4 kg

The 802 D5 Verdict: Reference Sound, Without Reservation

The Bowers & Wilkins 802 D5 is a masterclass in loudspeaker engineering. Every element, from the Diamond tweeter and Biomimetic Suspension to the Aerofoil woofers and reverse-wrap cabinet, serves one goal: getting the enclosure out of the way and letting the music through. Treble is limpid and extended and the midrange is natural and richly textured. Bass reaches the lowest octaves with real authority and control, and the soundstage is vast, stable and precisely focused. For anyone who wants flagship-calibre 800 Series performance in a more accommodating form, the 802 D5 is an extraordinary proposition.
