Bowers & Wilkins HTM81 D5 Centre Speaker Review: The Flagship Voice of the 800 Series Diamond

A reference home theatre depends on the centre channel. Dialogue, vocals and a large share of on-screen action all come through it, and a mediocre one will undermine even the finest pair of floorstanders. In this Bowers & Wilkins HTM81 D5 Centre Speaker review, we look closely at the flagship centre-channel speaker in the 800 Series Diamond range. Bowers & Wilkins designed it to be the voice of systems built around the 801 D5 and 802 D5. If you are planning a no-compromise cinema room, this is a speaker you need to know about. We will cover the drivers, the cabinet engineering, system matching and amplification, and who it suits best.

Bowers & Wilkins HTM81 D5 Review: At a Glance

The HTM81 D5 is a three-way vented-box design. Every element was chosen to keep dialogue clear and to match the scale of B&W's largest 800 Series Diamond floorstanders. Its driver complement is serious:

• A 25 mm Diamond dome tweeter in a Solid Body Tweeter-on-Top enclosure
• A decoupled 150 mm Continuum™ cone FST™ midrange driver with Biomimetic Suspension and an Anti-Resonance plug
• Twin 200 mm Aerofoil™ bass drivers

All of this sits inside a Matrix™-braced cabinet with Flowport™ bass-reflex loading. B&W quotes a frequency response of 28 Hz–28 kHz (±3 dB), which is genuine full-range capability for a centre channel.

Specification	Details
Product Type	Reference centre-channel speaker
Enclosure Design	Three-way vented-box system
High-Frequency Driver	1 × 25 mm Diamond dome tweeter
Midrange Driver	1 × 150 mm Continuum cone FST driver
Bass Drivers	2 × 200 mm Aerofoil bass cones
Frequency Range	20 Hz–35 kHz at -6 dB
Frequency Response	28 Hz–28 kHz, ±3 dB
Sensitivity	90 dB at 2.83 Vrms/1 m
Nominal Impedance	8 ohms
Minimum Impedance	3.0 ohms
Recommended Amplifier Power	50–1,000 W into 8 ohms on unclipped programme
Maximum Recommended Cable Impedance	0.1 ohm
Harmonic Distortion	<1% from 90 Hz–20 kHz; <0.3% from 100 Hz–8 kHz
Dimensions (H × W × D)	334 mm (incl. tweeter) × 846 mm × 363 mm (incl. grille and terminals)
Net Weight	33.4 kg
Finishes	Stealth Black, Warm White, Dark Walnut
Compatible Stand	Bowers & Wilkins FS-HTM (sold separately)

Why the Centre Channel Matters So Much

Home theatre enthusiasts like to discuss subwoofers and height channels. The speaker doing the most work in any film, though, is the centre. It carries nearly all the dialogue, plenty of the score and a constant stream of effects that are meant to sit on the screen.

Many centre speakers are two-way designs with a tweeter flanked by woofers. Those woofers have to handle both vocal frequencies and bass, and that is where voices can turn chesty, muddy or congested when the action gets busy.

The HTM81 D5 uses a dedicated three-way configuration to avoid this. High, midrange and bass frequencies each go to a specialised driver. That keeps voices clear and anchored to the centre of the screen while explosions, orchestral swells and low-frequency effects play at the same time. It also has the output to stay composed in large rooms and at reference cinema levels.

The Diamond Dome Tweeter: Treble Without Compromise

The tweeter is the signature 800 Series Diamond technology, a 25 mm Diamond dome. Diamond pairs very low mass with exceptional stiffness. In practice, the dome tracks the electrical signal with great accuracy and stays well clear of break-up behaviour within the audible band.

You hear the benefit in the fine detail of a soundtrack: rain on a tin roof, the shimmer of a cymbal in the score, the ambient tail of a reverberant set. All of it comes through clean, open and well defined. The tweeter's extended performance (the HTM81 D5's range reaches 35 kHz at -6 dB) also helps keep the treble from sounding compressed or harsh in demanding passages. That matters on aggressive modern mixes at high volume, where lesser tweeters start to glare.

Solid Body Tweeter-on-Top

B&W does not bury the tweeter in the main cabinet. It sits in a rigid Solid Body Tweeter-on-Top enclosure, which separates it from the larger midrange and bass drivers and isolates it from cabinet vibration. The elongated housing is shaped to reduce acoustic diffraction around the tweeter.

The result is more precise imaging and a tighter link between what you hear and what you see. Dialogue appears to come from the actor's mouth rather than from a box below the screen. The same technology is used across the 800 Series Diamond range, so the HTM81 D5 shares its tweeter design with its floorstanding partners.

Continuum Cone FST Midrange: The Heart of the Voice

The HTM81 D5's midrange section is what most clearly sets it apart. A 150 mm Continuum cone FST midrange driver covers the vocal and instrumental frequencies where our ears are most sensitive.

Continuum is B&W's composite cone material, and FST (Fixed Suspension Transducer) is its long-standing midrange approach. Together they are designed for natural, uncoloured vocal reproduction.

The driver is also decoupled from the main enclosure. This minimises interference from the twin bass drivers, so their energy does not smear the midrange. Voices sound focused and natural, and subtle tonal detail in film scores and multichannel music is preserved. Think of the texture of a whispered line, or the breath before a singer's phrase.

Biomimetic Suspension and the Anti-Resonance Plug

Look closely and you will find further refinement:

• Biomimetic Suspension: This open suspension structure replaces a traditional fabric spider. It is designed to reduce the unwanted air pressure and colouration a conventional spider can introduce. With fewer mechanical disturbances acting on the driver, dialogue and instruments come through with more transparency.
• Anti-Resonance plug: This gives further control over driver behaviour, helping the midrange stay clear during high-volume scenes.

For audiophiles who use their cinema room for multichannel music as well as film, this midrange is the reason to choose the HTM81 D5 over a lesser centre channel.

Twin 200 mm Aerofoil Bass Drivers: Scale and Authority

Bass is where this centre shows its flagship status. Two 200 mm Aerofoil bass drivers give the HTM81 D5 the scale and authority to match the 801 D5 and 802 D5.

Aerofoil cone technology combines a carbon-fibre skin with a variable-profile foam core. This balances low moving mass with high stiffness, so the cones stay controlled as they move. B&W says this produces deep, powerful low frequencies with reduced distortion.

With response extending to 28 Hz at ±3 dB, the HTM81 D5 can reproduce substantial bass from voices, music and cinematic effects. Male voices keep their full chest weight, and low-frequency effects panned across the front stage keep their impact as they pass through the centre. It still integrates comfortably with subwoofers in a complete home theatre system, giving you more flexibility with crossover settings and bass management.

Matrix Bracing and Flowport: An Inert, Clean Foundation

The best drivers are only as good as the enclosure they sit in. The HTM81 D5 uses B&W's Matrix internal bracing system, a reinforced internal structure that reduces unwanted cabinet vibration. A more inert cabinet gives the drive units a stable acoustic platform, which means cleaner dialogue, better definition and more accurate placement of sound across the front stage. The 33.4 kg net weight hints at how solid this enclosure is.

Bass-reflex loading comes through B&W's Flowport technology. The port is shaped to reduce turbulence and port noise as air enters and leaves the enclosure. Bass stays clean and controlled during action scenes and high-volume playback, without the chuffing a poorly designed port can produce.

Perfect Partner for the 801 D5 and 802 D5

Timbre matching is the most important factor when choosing a centre for a premium front stage. When a sound pans from left to centre to right, its tonal character should not change. If the centre sounds different from the mains, the illusion breaks.

The HTM81 D5 was designed as the centre-channel partner for the 801 D5 and 802 D5. Its 150 mm Continuum midrange and twin 200 mm Aerofoil bass drivers closely align with the 802 D5's driver configuration. It also shares the Diamond dome tweeter and Solid Body Tweeter-on-Top technology. The outcome is a consistent tonal character as dialogue, effects and music move across the front three channels, giving one seamless, wall-to-wall soundstage.

If you already own 801 D5s or 802 D5s, or plan to, this is the centre channel they were built for. If you are unsure how the HTM81 D5 will suit your existing system, give our team a call on 1300 308 711 to talk it through.

Amplification, Placement and Set-Up Considerations

Amplification

With 90 dB sensitivity (2.83 Vrms/1 m) and an 8-ohm nominal impedance, the HTM81 D5 is reasonably efficient for a speaker of its size and ambition. Note the 3.0-ohm minimum impedance, though. Pair it with an amplifier that has a robust power supply and good current delivery.

B&W recommends 50–1,000 W into 8 ohms on unclipped programme, which is a wide window. The HTM81 D5 will reward a high-quality AV processor driving dedicated power amplification. That is the kind of pairing that brings out the dynamic headroom this speaker is capable of. B&W also specifies a maximum recommended cable impedance of 0.1 ohm, so choose quality speaker cable of appropriate gauge for your run lengths.

Placement

At 846 mm wide, 334 mm tall (including tweeter) and 363 mm deep (including grille and terminals), the HTM81 D5 is a substantial piece of engineering, and your room design needs to allow for it.

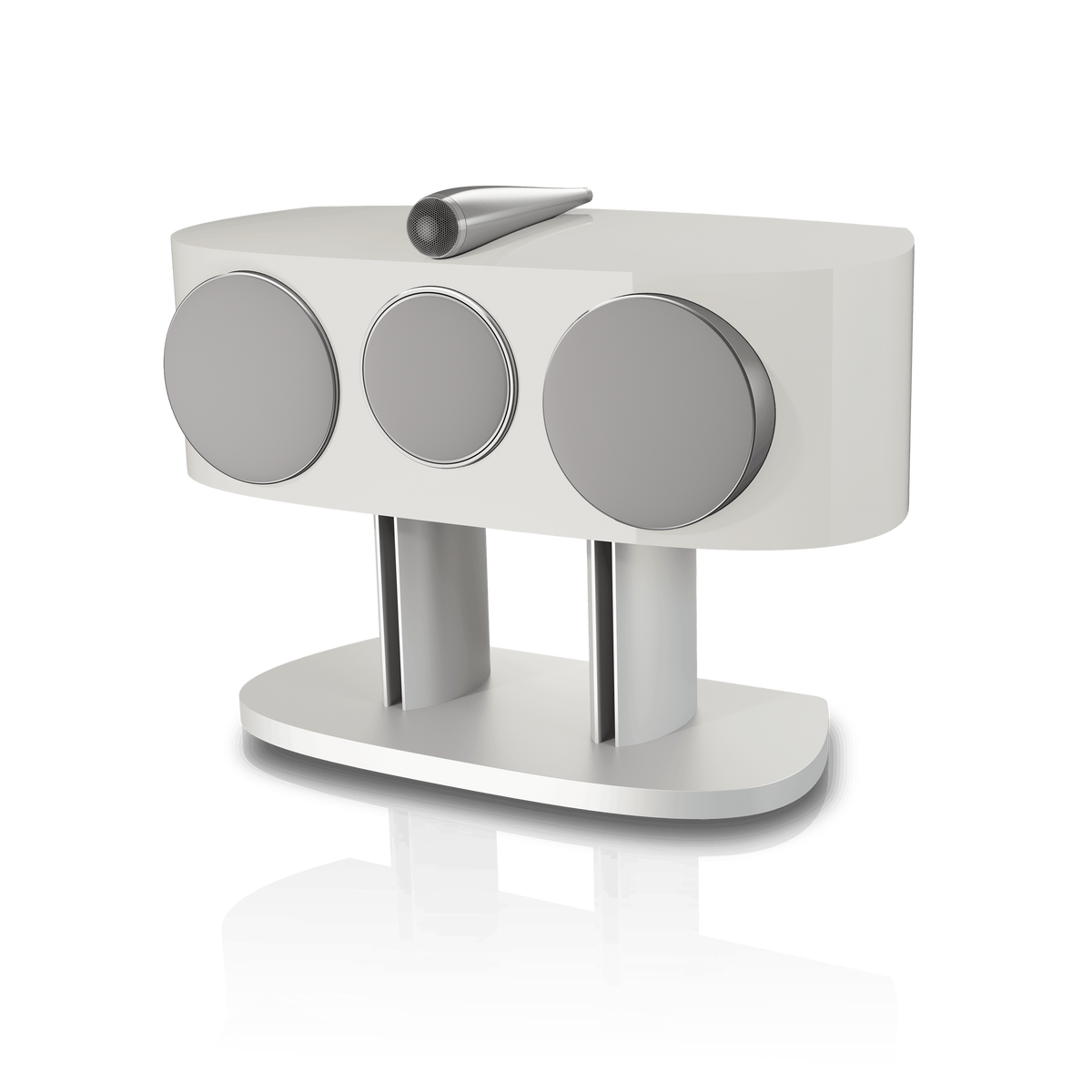

The optional FS-HTM floor stand, available in Black and Titanium and sold separately, was designed for compatible 800 Series Diamond centre speakers. It provides a stable base and sets the speaker at an appropriate height beneath a television or projection screen. For many installations it is the neatest way to get the HTM81 D5's acoustic centre where it should be.

Matching the HTM81 D5 to the right processor, amplification, cabling and stand is something we help customers with every day. Email us at sales@theaudiotailor.com.au with your room details and we will help you plan the set-up.

Performance: What the Engineering Delivers

Taken together, the HTM81 D5's technologies give a clear picture of how it performs.

• Dialogue: The decoupled Continuum midrange with Biomimetic Suspension keeps voices natural and free from boxy colouration. They stay intelligible even in dense, effects-heavy scenes. The distortion figures support this, with B&W quoting less than 0.3% from 100 Hz to 8 kHz, which is the heart of the vocal band.
• Imaging: The Tweeter-on-Top's low-diffraction housing locks dialogue to the screen.
• Bass: The twin Aerofoil woofers give the speaker the weight to stand alongside large floorstanders rather than sounding like the weak link.
• Treble: The Diamond tweeter keeps the top end detailed and airy without strain.

Equally important, this speaker is not just for film. Multichannel music, concert Blu-rays and immersive audio mixes all benefit from a centre with true high-fidelity credentials. For anyone who listens critically in their theatre room, the HTM81 D5 brings full 800 Series Diamond resolution to the front-centre position.

Who Is the HTM81 D5 For?

• Owners of 801 D5 or 802 D5 floorstanders who want a perfectly timbre-matched front stage.
• Dedicated cinema room builders chasing reference-level playback in larger spaces, where output and composure matter.
• Audiophiles with multichannel music collections who want the centre to be as resolving as the mains.
• Custom installation clients who want a flagship centre in a finish that suits their interior.

Finishes to Suit Premium Interiors

The HTM81 D5 comes in three cabinet finishes:

• Stealth Black, supplied with a black grille

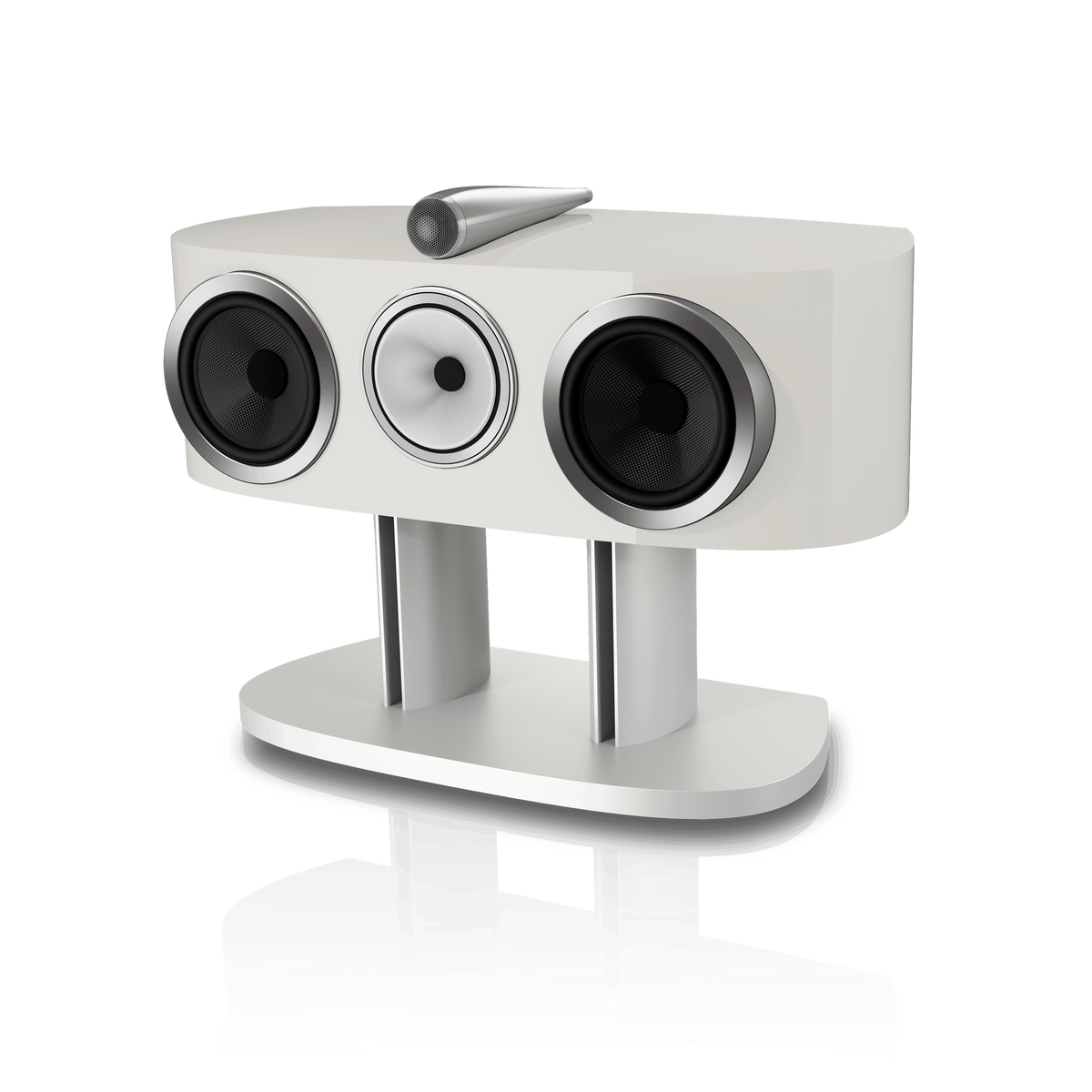

• Warm White, supplied with a grey grille
• Dark Walnut, supplied with a black grille

Stealth Black suits a dedicated, light-controlled cinema room. Warm White and Dark Walnut fit more easily into a stylish living-room theatre.

Bowers & Wilkins HTM81 D5: Pros and Cons

Pros

• Flagship 800 Series Diamond centre-channel performance
• Dedicated three-way design keeps dialogue clear and focused in complex scenes
• 25 mm Diamond dome tweeter for detailed, open, non-fatiguing treble
• Solid Body Tweeter-on-Top for precise, screen-locked imaging
• Decoupled 150 mm Continuum FST midrange with Biomimetic Suspension for natural, transparent voices
• Twin 200 mm Aerofoil bass drivers with response down to 28 Hz (±3 dB)
• Matrix bracing and Flowport for a clean, controlled foundation
• Timbre-matched to the 801 D5 and 802 D5 for a seamless front stage
• 90 dB sensitivity and a wide 50–1,000 W amplifier recommendation
• Low distortion: less than 0.3% from 100 Hz–8 kHz
• Three premium finishes, with a dedicated FS-HTM stand available

Cons

• At 846 mm wide and 33.4 kg, it needs proper planning for placement and support. The optional FS-HTM stand makes this easy.
• The 3.0-ohm minimum impedance means it deserves quality amplification to perform at its best, which suits the reference systems it is designed for.
• Once you hear it, you may find yourself wanting the rest of the 800 Series Diamond family.

The Voice Your Reference Cinema Deserves

The Bowers & Wilkins HTM81 D5 is a centre speaker built without compromise. It brings the Diamond dome tweeter, Continuum FST midrange, Aerofoil bass drivers, Matrix bracing and Flowport loading together in one cabinet designed for the most important channel in your system. If you are building around the 801 D5 or 802 D5, there is no better way to complete the front stage. It is a flagship in every sense, and it makes dialogue, music and effects sound clear, natural and full-scaled.

Ready to take the next step? View full details on the Bowers & Wilkins HTM81 D5 Centre Speaker product page. To discuss system matching, amplification, stands or a full home theatre design, contact our team (Gabby, Nathan, Vaughan and Stuart). Call 1300 308 711, email sales@theaudiotailor.com.au, or visit us at Unit 9/20 Rivergate Place, Murarrie, Qld 4172. We ship nationwide, and we would be glad to help you build the cinema system you have been dreaming of.
