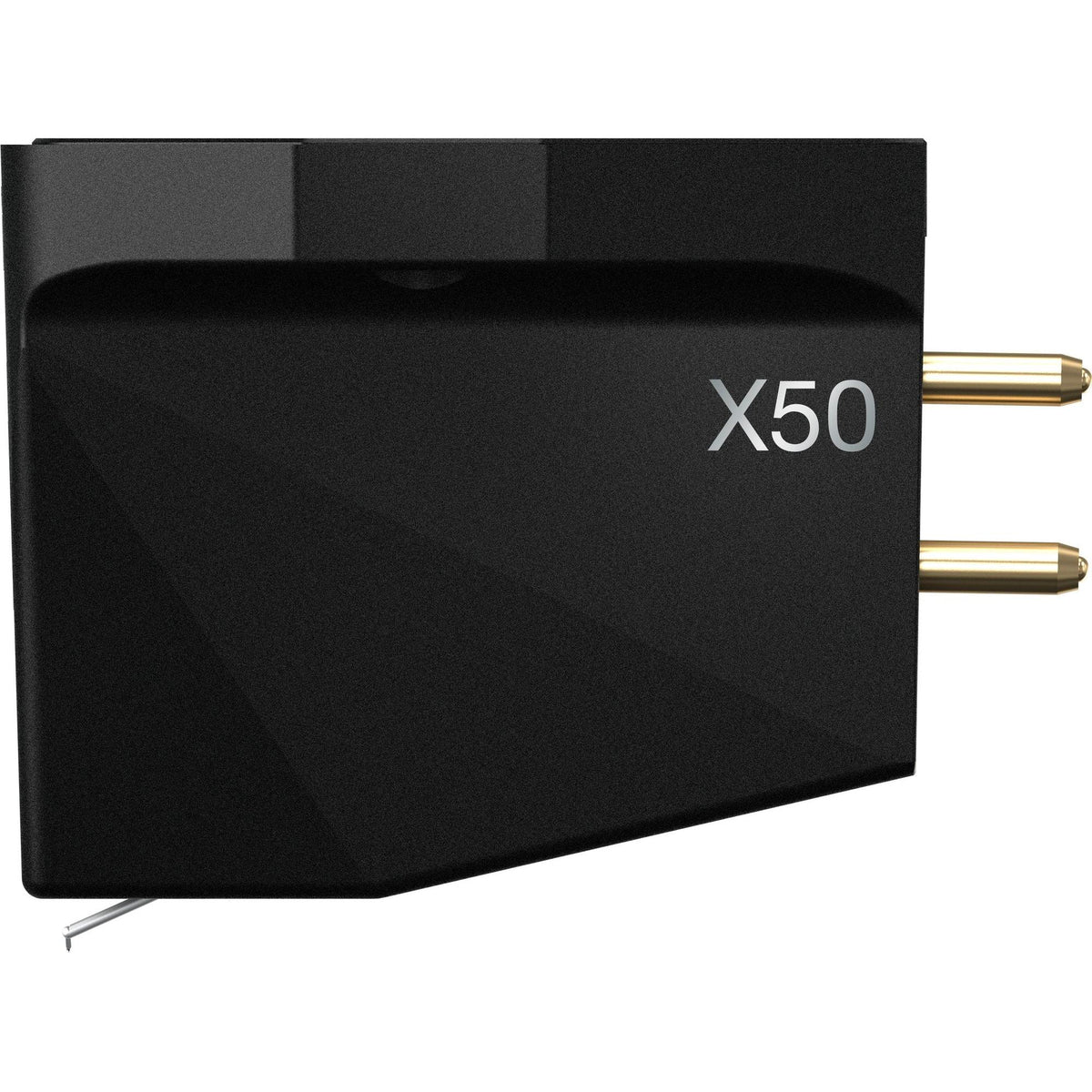

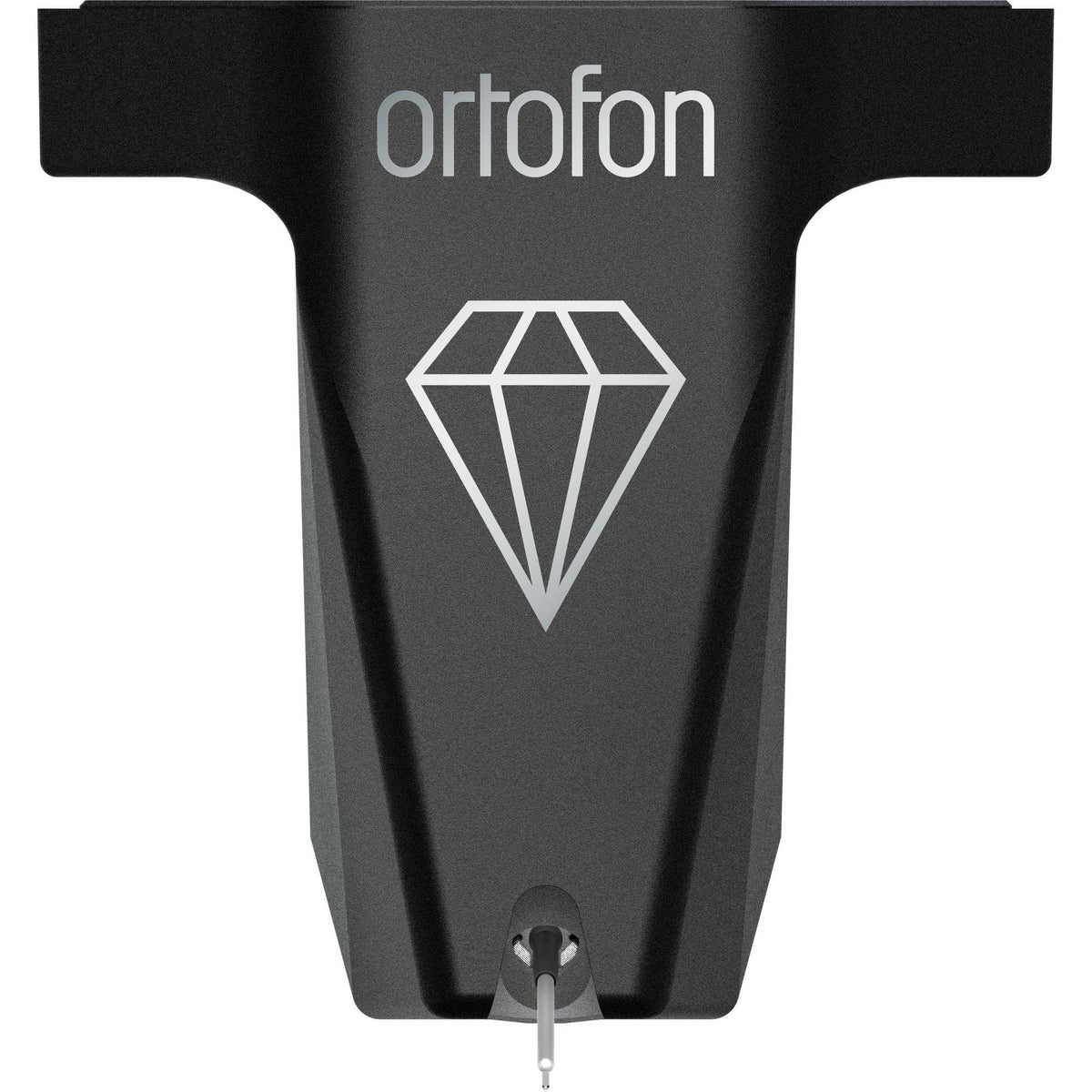

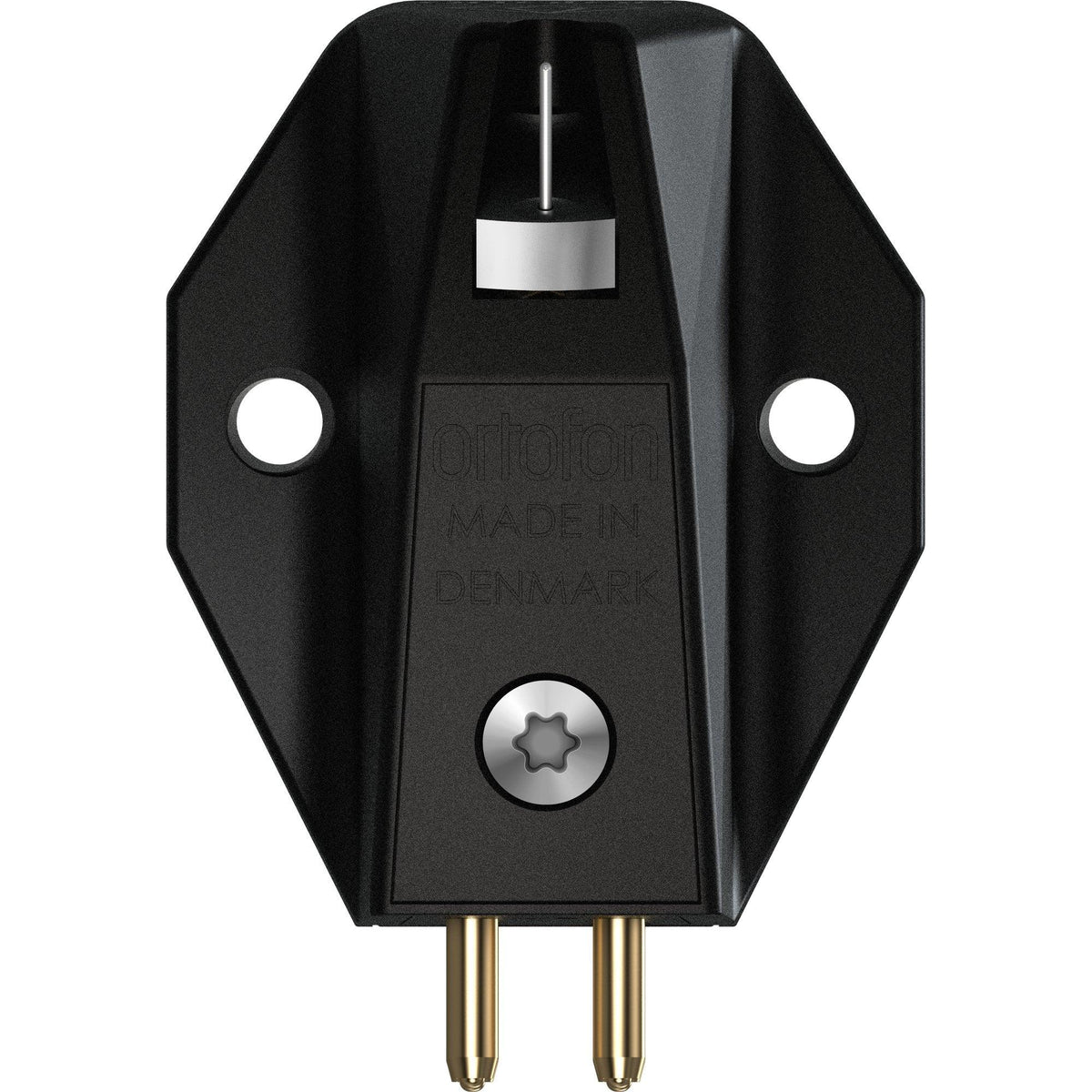

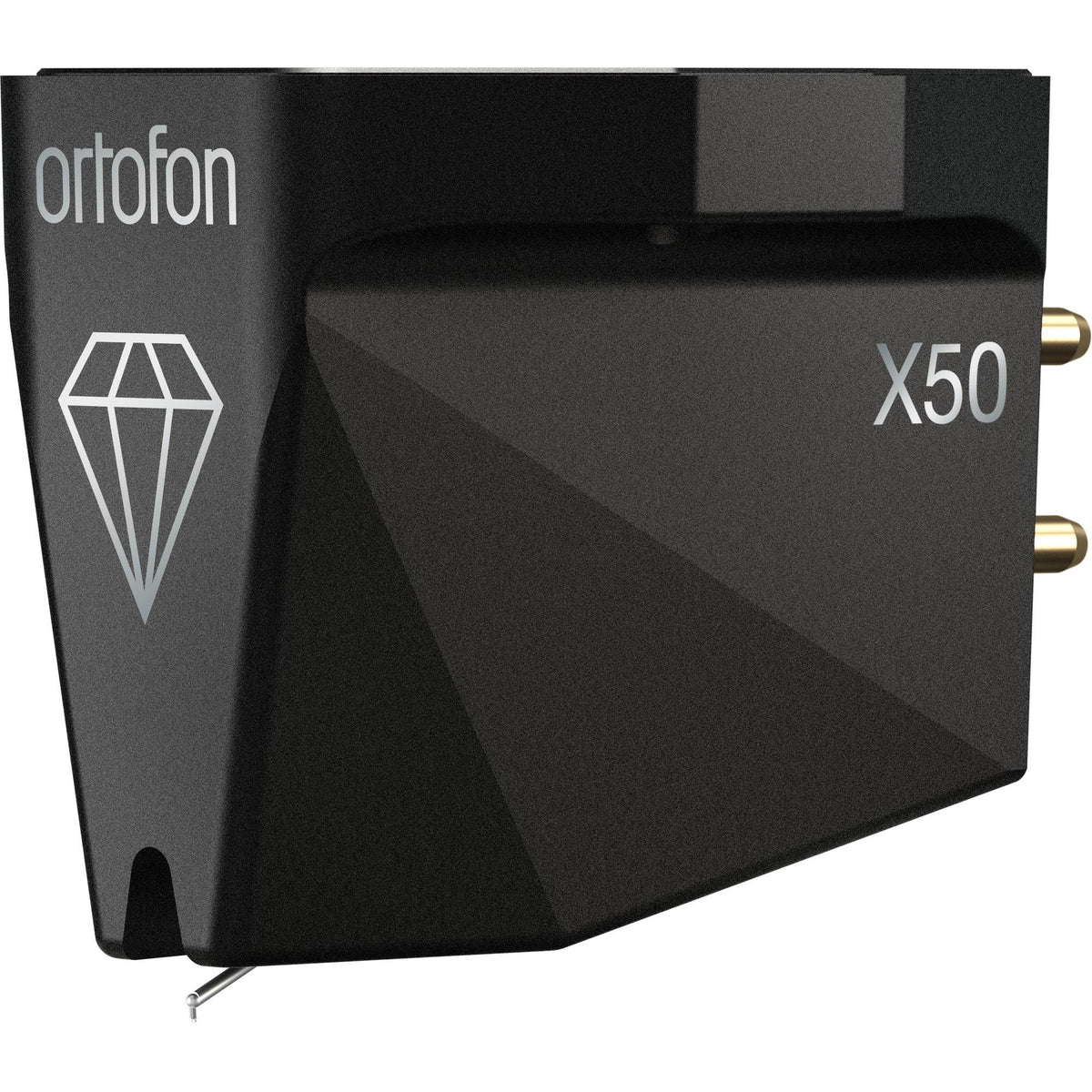

Ortofon MC X50 Review: The Flagship of the MC X Series Masters the Groove

If you have been waiting for the moment a moving coil cartridge brings you noticeably closer to the master tape, this Ortofon MC X50 review is for you. The Ortofon MC X50 Moving Coil Phono Cartridge is the flagship of Ortofon's MC X platform. It pairs a nude Micro Ridge diamond with a boron cantilever, a suspension compound developed specifically for this model, and a quad coil generator wound in high-purity silver. Ortofon's stated goal is the highest tracking stability, lowest distortion and most precise retrieval of recorded detail in the series. Having spent time with the design brief, the specifications and the engineering thinking behind it, we think it is one of the more compelling MC upgrades on the market for serious vinyl lovers.

Ortofon MC X50 at a Glance

• Moving coil (MC) phono cartridge, the flagship of the MC X Series
• Nude Micro Ridge diamond stylus with an r/R 2.5/75µm tip radius
• Boron cantilever for high stiffness and low moving mass
• Ortofon-exclusive rubber suspension, using a newly formulated compound produced in-house
• Quad coil system wound with high-purity silver wire
• Newly developed magnet system with a one-piece pole cylinder and rear magnet yoke
• 0.4mV output, 6Ω internal impedance, recommended load above 50Ω
• 2.0g tracking force, 14µm/mN dynamic lateral compliance, 8.6g body weight

“With the MC X50, the MC X Series reaches its most advanced implementation — the highest level of tracking stability, lowest distortion, and most precise retrieval of recorded detail within the series.” — Ortofon

Why the Cartridge Matters Most in Your Vinyl Chain

Every turntable system rises or falls on what happens at the stylus tip. However good your phono stage, amplification and loudspeakers are, they can only reproduce the information the cartridge pulls out of the groove. Anything lost to mistracking, cantilever flex or generator inefficiency is gone for good. That is why a cartridge upgrade is so often the single most transformative change a vinyl enthusiast can make.

Ortofon has been refining moving coil technology for decades. With the MC X Series, the company has gone back to first principles, developing new mechanical architectures, premium materials and in-house manufacturing processes rather than assembling off-the-shelf parts. The MC X50 is where all of that work comes together.

The Nude Micro Ridge Diamond: Tracing the Finest Modulations

At the business end of the MC X50 is a nude Micro Ridge diamond with a 2.5/75µm tip radius. For readers less familiar with stylus geometry, this is a line-contact style profile. The very small minor radius lets the diamond reach deep into the finest high-frequency modulations. The long major radius spreads the contact area vertically along the groove wall. Two benefits follow from this:

• Superior high-frequency and inner-groove tracing. As the stylus moves towards the label, groove velocity falls and the recorded wavelengths shorten. Conical and basic elliptical profiles struggle here and produce the familiar inner-groove distortion and loss of air. A Micro Ridge profile follows those compressed modulations far more faithfully, so the last track of a side sounds much closer to the first.
• Less wear on your records. Because the contact footprint is spread along the groove wall rather than focused on a single point, pressure is distributed more evenly. Ortofon notes that the Micro Ridge profile extracts more information from the groove with less record wear, which matters if you are playing treasured first pressings.

A nude diamond is mounted directly to the cantilever with no metal shank or bonded base. That cuts effective tip mass, which helps the stylus respond quickly and accurately to groove modulations.

The Boron Cantilever: Speed Without Inertia

The cantilever is the transmission line between the diamond and the generator. Its job is to carry the stylus's movements to the coils without adding colouration, flex or resonance. Boron is prized by cartridge engineers because it has an exceptional stiffness-to-mass ratio. It is extremely rigid yet very light.

That matters a great deal. A cantilever with too much mass carries inertia, which blunts transient edges and smears timing. A cantilever that flexes stores and releases energy, which clouds detail. Boron avoids both problems. The result is fast, controlled tracking of signal variations, which should translate into crisp leading edges on percussion, precise note starts and stops, and the sense of rhythmic drive that makes vinyl so engaging. Ortofon describes it as the ideal partner for the Micro Ridge stylus, and the combination is a classic high-end pairing for good reason.

A Suspension Engineered Specifically for the MC X50

Discussions of cartridge performance usually focus on the stylus and cantilever. Experienced vinyl engineers know the suspension is just as critical. The rubber damper that holds the cantilever assembly governs how the coils move. It sets compliance, controls resonances and determines how well the stylus keeps consistent contact with the groove through loud, dynamic passages.

Ortofon designs and produces its rubber compounds in-house, and for the MC X50 it has formulated a brand-new compound just for this model. It is tuned to work in balance with the Micro Ridge stylus and boron cantilever. According to Ortofon, the aim is stable tracking and consistent groove contact across the full dynamic range of any recording. In practice, that means orchestral crescendos, heavily modulated bass lines and hot-cut pressings should be handled with composure rather than strain.

Pure Silver Quad Coils and a New Magnet System

Inside the body, the MC X50's generator is where mechanical motion becomes an electrical signal. Ortofon has put serious effort into getting this part right.

High-Purity Silver Coil Wire

Most moving coil cartridges use copper wire. Every MC X model uses high-purity silver instead, taking advantage of silver's superior conductivity to preserve signal clarity and fine detail. The MC X50 uses a quad coil configuration, which Ortofon says makes the most of the silver wire and extracts the signal from the generator with the consistency and purity that high-resolution vinyl playback demands.

One-Piece Pole Cylinder with Rear Magnet Yoke

The magnet system has also been redesigned. It uses a one-piece pole cylinder integrated into a rear magnet yoke, engineered for maximum magnetic efficiency. A more efficient magnetic circuit gives the coils a more focused field to move through. Combined with the silver windings, this produces a clean, strong signal path. Ortofon's philosophy is that the generator should be engineered as one cohesive system, and the MC X50 reflects that approach throughout.

What the Engineering Means for the Sound

Put these elements together and a clear sonic picture emerges. The measured figures are telling. Frequency response is held within ±1dB from 20Hz to 20kHz, which indicates a truly neutral tonal balance with no contrived treble lift or bloated bass. Channel balance of 0.5dB at 1kHz points to tight manufacturing tolerances and a stable, centred stereo image. Channel separation of 28dB supports a wide, well-defined soundstage with instruments placed firmly in space.

Given the Micro Ridge profile, boron cantilever and silver quad coils, here is what we would expect listeners to notice:

• Resolution and micro-detail: the decay of a cymbal, the breath before a vocal line, the ambient cues of the recording venue. These are the subtle details that separate a good cartridge from a great one.
• Transient speed and timing: boron's low inertia should keep rhythms taut and articulate, from jazz brushwork to driving rock.
• Low distortion under pressure: the dedicated suspension and precise stylus geometry are designed to stay composed through complex, dynamic passages and the difficult inner grooves.
• Tonal honesty: a flat ±1dB response lets your records speak for themselves, whether that is a warm 1950s mono reissue or a modern audiophile pressing.

If you would like to hear how the MC X50 might transform your own collection, give our team a call on 1300 308 711. We love talking vinyl and can help you judge whether this is the right step for your system.

System Matching: Phono Stage, Loading and Tonearm

Phono Stage and Gain

With a 0.4mV output, the MC X50 is a low-output moving coil design. It needs a quality MC phono stage or step-up transformer with enough clean gain to bring the signal up to line level without a raised noise floor. The internal impedance is a low 6Ω. Ortofon recommends a load resistance above 50Ω, which gives you plenty of flexibility across most quality MC phono stages. Fine-tuning the loading can subtly shape treble presentation and damping, and it is one of the rewarding parts of setting up a cartridge of this calibre.

Tonearm Compatibility

The MC X50 weighs 8.6g, has a dynamic lateral compliance of 14µm/mN and a recommended tracking force of 2.0g. That puts it squarely in medium-mass tonearm territory. It is a versatile combination that suits a wide range of quality turntables, from entry-level audiophile decks through to reference installations. Getting the cartridge-arm resonance right is essential for clean bass and stable tracking, and we are always happy to check compatibility with your specific arm.

Setup

A cartridge with a line-contact stylus rewards careful alignment. Correct overhang, zenith, azimuth, VTA/SRA and tracking force all contribute to getting the most from the Micro Ridge profile. Our team can talk you through the essentials. Email us at sales@theaudiotailor.com.au or call and we will point you in the right direction.

Who Is the Ortofon MC X50 For?

• The vinyl enthusiast ready for a serious MC upgrade: if you are moving up from a moving magnet or an entry-level MC, the MC X50 offers a big leap in resolution and refinement.
• Owners of quality medium-mass tonearms: its compliance and weight suit a very broad range of well-regarded turntables.
• Collectors who care about their records: the Micro Ridge profile reduces wear while pulling out more detail, which makes it ideal for valuable pressings.
• Listeners who value neutrality and truth: the flat measured response and precise tracking suit anyone who wants to hear exactly what is on the record.
• Audiophiles building toward a reference system: the MC X50 has the resolving power to grow with your phono stage and amplification upgrades.

Ortofon MC X50 Pros and Cons

Pros

• Flagship of the MC X Series, delivering the highest tracking stability and lowest distortion in the range
• Nude Micro Ridge diamond (r/R 2.5/75µm) for exceptional high-frequency and inner-groove tracing
• Micro Ridge profile extracts more detail with less record wear
• Boron cantilever offers superb stiffness-to-mass ratio for fast, precise transients
• Suspension compound formulated specifically for the MC X50 and made in-house by Ortofon
• Quad coils wound in high-purity silver for outstanding signal clarity
• Newly developed one-piece pole cylinder magnet system for maximum efficiency
• Flat ±1dB frequency response from 20Hz to 20kHz for true tonal neutrality
• Tight 0.5dB channel balance and 28dB separation for precise imaging
• Flexible loading (above 50Ω) suits most quality MC phono stages
• Medium compliance pairs with a wide range of turntables and tonearms

Cons

• 0.4mV output needs a quality MC phono stage or step-up. Worth it at this level, and our team can help you match one.
• A line-contact stylus rewards precise alignment. It is a small investment of time for a big return, and we are happy to guide you.

Ortofon MC X50 Specifications

Where the Groove Meets the Music: Our Verdict on the Ortofon MC X50

The Ortofon MC X50 is what happens when a company with deep moving coil expertise designs a cartridge as a complete, integrated system. The nude Micro Ridge diamond, boron cantilever, bespoke in-house suspension, pure silver quad coils and redesigned magnet circuit all work toward one goal: pulling the most accurate, lowest-distortion signal possible from your records. The measurements back up the engineering, with a flat ±1dB response, tight channel balance and a versatile medium-compliance design that suits a wide range of quality turntables.

For anyone serious about vinyl, this Ortofon MC X50 review leaves us in no doubt. It is a flagship-grade moving coil that brings real reference-level refinement within reach, and it deserves a place on the shortlist of anyone looking to master the groove.

“Where the groove meets the music. The Ortofon MC X50 — the most advanced expression of the MC X platform, and the most precise retrieval of recorded detail that Ortofon's engineers have achieved in this series.”

Ready to take the next step? Explore the Ortofon MC X50 Moving Coil Phono Cartridge on our website. For tailored advice on phono stage pairing, tonearm matching or setup, talk to Stuart, Gabby, Nathan or Vaughan on 1300 308 711, email sales@theaudiotailor.com.au, or visit us at Unit 9/20 Rivergate Place, Murarrie, Qld 4172. As Sound+Image's HiFi Retailer of the Year for 2021 and 2022, we ship Australia-wide and are always happy to help you get the very best from your vinyl.
